Horse Harmony Pro Light Therapy Pad

The 460nm blue light possesses antibacterial properties, which can aid in wound healing and combat conditions like mud fever. Meanwhile, the 660nm red light focus on the surface, while the 850nm infrared light penetrate deeper to target soft tissue.

Each setting will last for 15minutes.

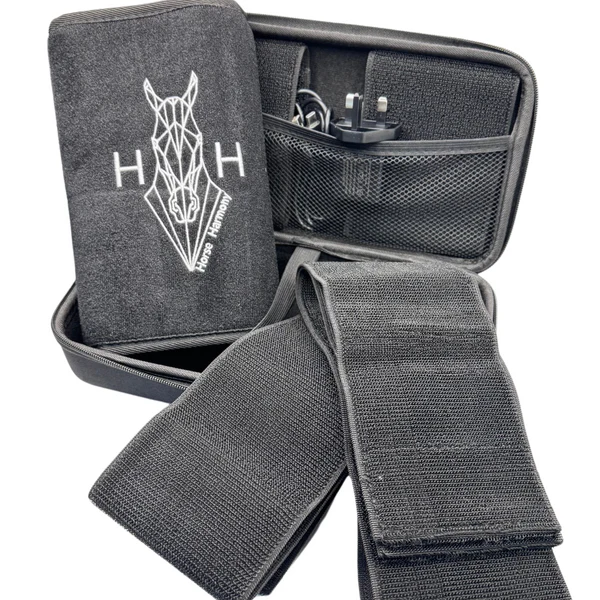

The pad also comes with 4 Velcro straps (2 long and 2 short) to allow for positioning in the area of your choice.

Each wavelength serves a distinct purpose, enhancing the overall effectiveness of the treatment.

Here’s a breakdown of the key wavelengths and their respective benefits:

• Red Light (660nm): Targets the surface of the skin.
• Infrared (850nm): Penetrates deeper to relieve muscle tension, support joint mobility, and reduce pain.
• Blue Light (460nm): Supports skin health and fights bacteria, making it effective for treating wounds and skin irritations.
• Enhanced Blood Circulation: Red and infrared light therapy stimulates blood flow, promoting faster healing and recovery.
• Pain and Inflammation Reduction: Effective in alleviating muscle soreness, joint pain, and reducing inflammation.
• Improved Muscle Function: Regular use can lead to increased muscle relaxation and flexibility, benefiting overall performance.
• Non-Invasive: A natural and drug-free way to support your horse’s wellbeing.

Technical Specifications

• Dimensions: 400 mm (Length) x 200 mm (Width)
• Weight: 580 grams including battery
• Wavelengths: 460 nm (Blue), 660 nm (Red Light); 850 nm, (Near-Infrared Light)
• Irradiation: over 120 mW/cm²
• LED Lifespan: Approximately 50,000 hours

Charging Instructions

• Built-in battery to charge with USB-C cord and plug provided.
• Plug the cord into the port near the on/off button and the opposite end into the plug provided.
• Charge for at least 5 hours before 1st use.
• Once plugged in and charging, the button will turn red.

Mode Selection

• Press the power button to turn on the device. The default mode activates all LEDs in continuous light mode. (Power button will remain green)
• Press the power button again to activate only red LEDs (660 nm) and near-infrared (850 nm).
• Press again to activate only blue LEDs (460 nm).
• Press once more to turn off.
• To activate pulse mode, hold the power button for more than 5 seconds on any of the above modes, and the LEDs will start pulsing. (Power button will remain blue) The same sequence will apply to pulse mode (all LEDs on, Red/Infrared on, Blue LED on).

Treatment Application

• Ensure the horse’s skin is clean and dry.

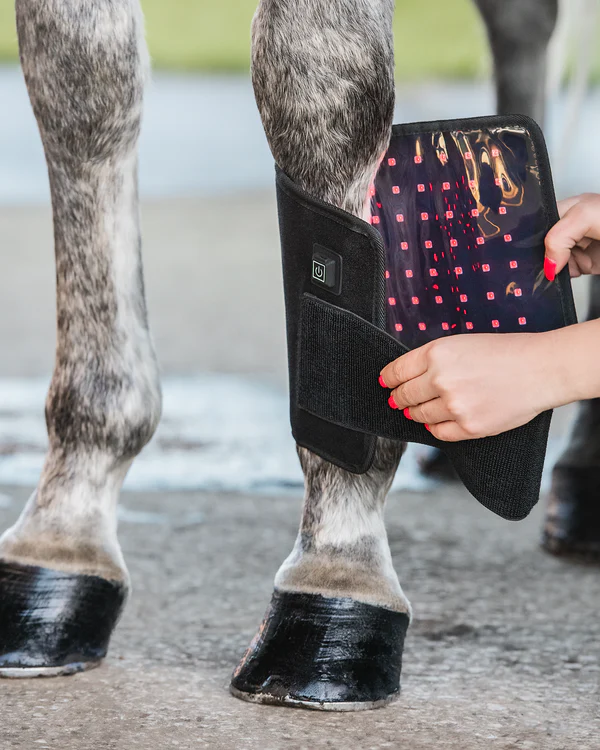

• Position the therapy pad on the desired treatment area.
• Secure the pad using the adjustable Velcro straps, ensuring a snug but comfortable fit.
• Each session duration is 15 minutes per area. Do not exceed 30 minutes per area.
• The therapy pad will turn off automatically after 15min.
• Once finished, store the device in the provided storage bag in a cool, dry place.

Warranty Information

The Pro Light Therapy Pad comes with a 2-year warranty covering manufacturing defects. This warranty does not cover damage resulting from misuse, unauthorised modifications, or accidents. For warranty claims, please retain your proof of purchase and contact our customer service department.

Please Note: Light therapy devices are designed to work alongside medications and are not a replacement for standard medical procedures.
